Automatic Barrel Mineral Water 5 Gallon
Washing Filling Capping Machine
Description of 5 gallon washing filling capping machine
The 5 gallon machine was used for filling drinking water, mineral water, pure water etc into 5 gallon big bottle and cap it. The 5 gallon bottle washing filling capping machine monoblock for pure water was combined with bottle washing, pure water filling and 5 gallon bottle capping machine into one body.
For washing unit, multiple injection of washing liquid and bleaching liquid is used to achieve the purpose of washing and
sterilizing.
For filling unit, the filling process introduces PLC control; the ingenious filling level inspector ensures the accuracy of filling volume.
For capping unit, the barrel caps can be automatic capped, and equipped with water spraying device to sterilize caps of bottles in order to ensure caps are aseptic and healthy.
Fillex 5 gallon water filling machine 300BPH
5 gallon water washing filling machine 450 BPH
5 gallon water filling capping machine 600 BPH
5 gallon barrel water filling line 900 BPH
Automatic Bottle Loading System
Model: IBW-8/16
Function: wash & disinfect the internal 5 gallon bottle with hot alkali water, detergent
water,cycle water, production water
Technical Parameter
- Washing capacity: 1200 bottles per hour
- Each washing stops washing time: 18 seconnds
- Washing tank: 4pcs ( hot hot alkali water tank, detergent water tank, cycle water tank, production water tank)
- Washing pump 4pcs fixed with each water tank.

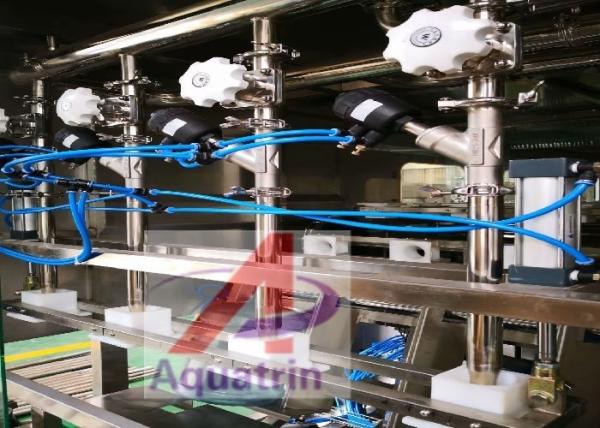

Water Filler
Model: RF-8E
Function: to fill the production water into empty bottle,Technical Parameter:
- Filling Nozzle: 8pcs SUS304
- Filling Capacity: 1200 bottle per hour
- Suitable to bottle dimension: 3,5,6 gallon bottle
- Drive motor power 2.2kw 1pc
- Dimension: 1800×1200×2500mm
Feature:
- Gravity style filling nozzle, high filling precision
- Under PLC control, full-automatic working
- SUS304 water bowl, inside polish
- SUS304pipeline, valve and other contact parts
- Automatic alarm system when accident
Caps Chain Plate Capper
capping the bottle by chain plate station
Techincal Parameter:
Capping capacity: 1200BPH
Feature:
Automatic caps arranging,caps washing and caps delivery.
Lack of caps automatic start, full of caps automatic start
Chain plate capping station, steadily & smoothly
SUS304 pipeline, valve and other liquid contacts parts
Caps Elevator
Model: CF-1
Function: to convey the caps to the Capper‘s caps container full-automatically
304 stainless steel construction
Heavy duty convey motor 1pc
1. Decapper
Centralized cap collecting bin, compact sture, easy operation and maintenance. New De-capper combines automatic bottle
infeeding, position, de-capping, cap blowing.
2. External Brusher
Circular conveying orbit, in the case of brush rotation keeps pace exactly with the revolution. All-saided flushing & brushing
barrel without any dead end, and no any damage occurs.
Recyclable water from inner washing machine or pure water is adopted to
wash and clean.
Model: SL-30E 5 gallon labeling machine
Main Parameter of Automatic Sleeve Labeling Inserting Machine:
| Model | SL-30E |
| Labeling Speed ( capacity) | Max1,600 bottle per hour |
| Suitable to Bottle Diameter | 3,5,6gallon bottle |
| Suitable to Bottle Height (mm) | Max. 450 |
| Suitable to bottle diameter(mm) | Max.270 |
| Suitable to Label length(mm) | 35~100mm |
| Label thickness | 0.035~0.08mm |
| Paper pipe interior diameter | 3~10mm adjustable |
| Power | 2.2kw |
| Machine Dimension | 1500(L)* 950(W) * 2000(H) mm |
| Weight | 350kgs |
1. We are a professional manufacturer of water, juice, oil, carbonated soft drink filling line.
2. We have the certifications of ISO, CE and so on for our filling machine.
3. Our company filling machines are exported to many countries abroad every year.
4. We can offer free technician support and consultation to help you to order a new equipment and start a new company.
5. We can offer one year guarantee for the filling machine you ordered freely.
6. W can send our technician to your country for machine commissioning and instruction.
7. Our filling machines are with good quality and good price.
8. Your inquiry for filling machine will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me .if any question you have.
