3000BPH 380V PET Carbonated Drink Bottling Machine SUS304 High Speed

Product Categories

Automatic Water Bottle Filling Machine [345]
5 Gallon Water Filling Machine [152]
Glass Bottle Filling Machine [31]
Juice Filling Machine [74]
Carbonated Drink Filling Machine [66]
Aluminum Can Filling Machine [26]
Blowing Mould Machine [22]
Reverse Osmosis Water Filtration System [22]
Shrink Sleeve Label Machine [18]
Bottle Sticker Labeling Machine [19]
OPP Labeling Machine [10]
Carton Box Packing Machine [12]
Shrink Film Wrapping Machine [13]
Date Code Printing Machine [13]

zhangjiagang aquatrin Machinery co.,ltd

Contact Now

3000BPH 380V PET Carbonated Drink Bottling Machine SUS304 High Speed

Name: 3000BPH 380V PET Carbonated Drink Bottling Machine SUS304 High Speed
Brand: Aquatrin
Price: 15000 USD

Brand Name : Aquatrin

Model Number : QGF

Certification : ISO CE SGS

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Name : Carbonated Filling Machine

Machinery Capacity : 3000BPH

Product name : soft drink filling machine

Filling speed : 3000bph based on 500ml

Filling Material : Carbonated drinks

Voltage : 380V 50HZ 3phase

Contact Now

3000BPH Automatic Glass Bottle PET Soft Drink / Carbonated Drink Bottling Machine For Bottled Beverage Packing Line

3000BPH 380V PET Carbonated Drink Bottling Machine SUS304 High Speed

Model	Capacity	Power	Size
DCGF14-12-5	2500BPH	1.8KW	2200×1800 × 2000
DCGF 18-18-6	3000BPH	2.6KW	2500 × 1800 × 230
DCGF 24-24-8	6500BPH	3.8KW	2800 × 2100 × 2300
DCGF 32-32-10	8000BPH	4.2KW	3500 × 2200 × 2300
DCGF 40-40-10	10000BPH	7KW	4760 × 2080 × 2300
DCGF 50-50-12	13000BPG	9KW	5150 × 3820 × 2700
DCGF 60-60-15	17000BPH	13KW	5300 × 3950 × 2700
DCGF 72-72-18	19000BPH	16KW	6250 × 4773 × 2700

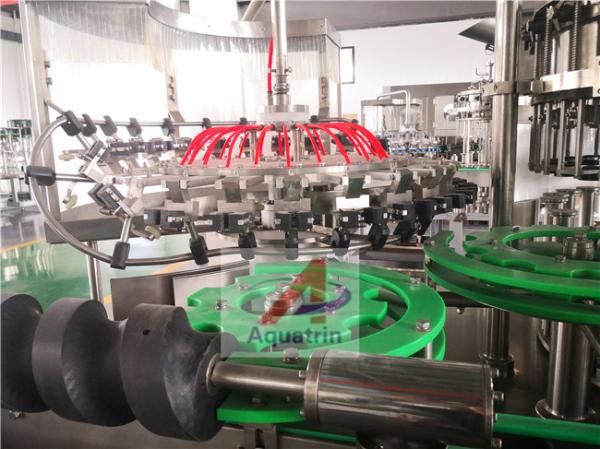

3000BPH 380V PET Carbonated Drink Bottling Machine SUS304 High Speed

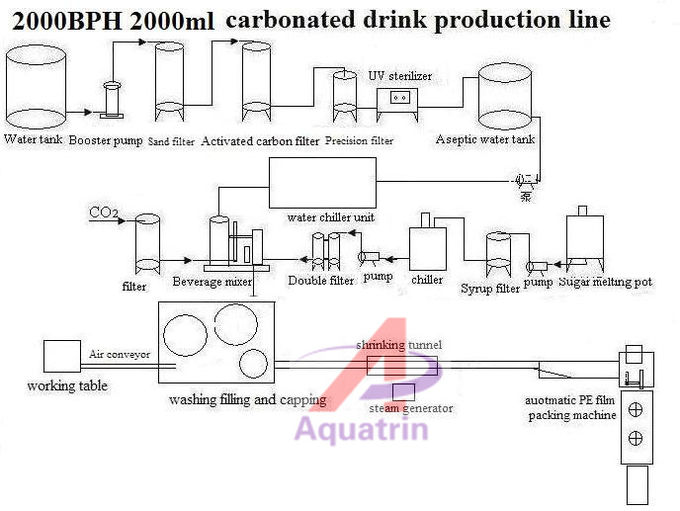

carbonated drink process layout

Water treatment system

The Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicron collodial matter, viruses, and bacteria from water. The process is called "Reverse" Osmosis since it requires pressure to force pure water across a membrane, leaving the impurities behind. Reverse Osmosis is capable of removing 95 - 99% of the total dissolved solids (TDS) and 99% of all bacteria, thus providing safe, pure water.

3000BPH 380V PET Carbonated Drink Bottling Machine SUS304 High Speed

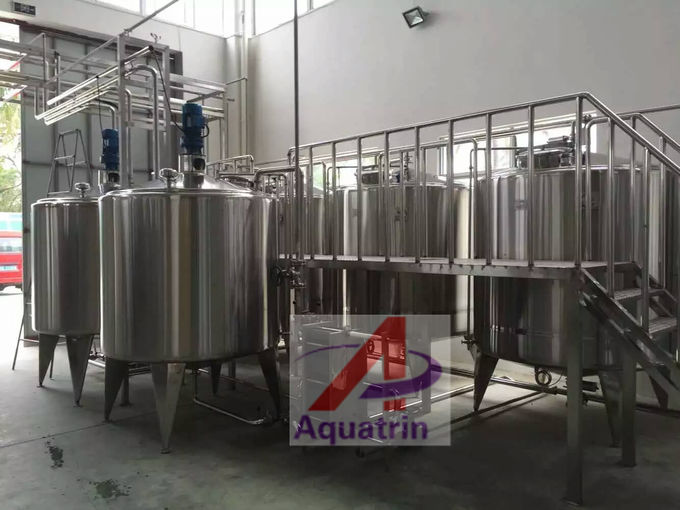

Carbonated drink blending system

It can improve the proportion of water, syrup and carbon dioxide. It is used in carbonated beverage production line and sparking wine. It is used to cooling the water before mixing which is connected with the mixer.

Cooling tunnel

Beverage Mixer

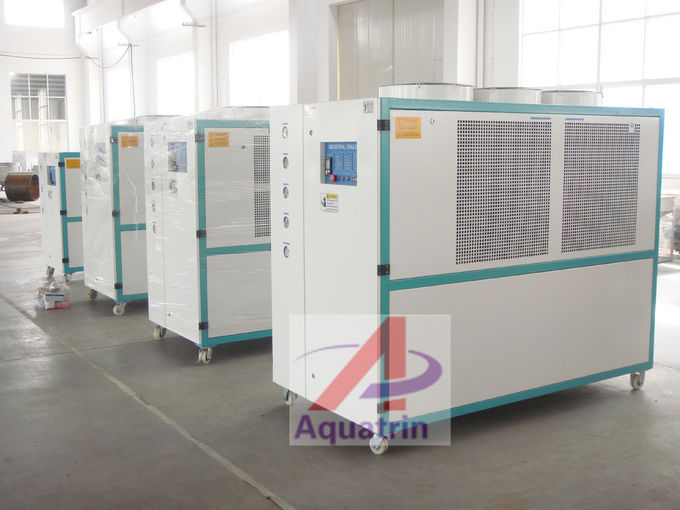

Chiller
