DGCF Carbonated Soda Water Filling Machine 48000BPH 3 In 1 ISO

Name: DGCF Carbonated Soda Water Filling Machine 48000BPH 3 In 1 ISO
Brand: Aquatrin
Price: 15000 USD

Quality DGCF Carbonated Soda Water Filling Machine 48000BPH 3 In 1 ISO wholesale

Brand Name : Aquatrin

Model Number : DGCF

Certification : CE,ISO

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Filling speed : 6000-48000BPH

Usage : Beverage Filling Packaging

Name : carbonated beverage filling machine

Dimension(L*W*H) : 2460*1720*2650

Advantage : Efficiency

Contact Now

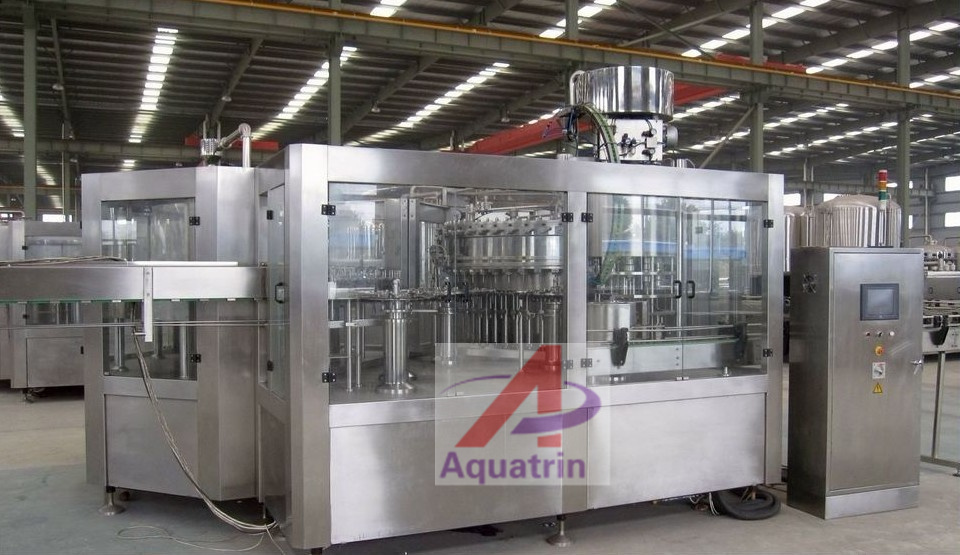

3 in 1 Carbonated drink filling machine

Combined with the function of washing filling capping in one machine,and apply to PET bottle carbonated drink filling.Mainly used for carbonated water,cola,sparking wine,water,soft drink and other carbonated beverage.

Machine List
Model	Washing heads	Filling heads	Capping heads	Capacity(b/h)500ml	Overall dimension(mm)
DCGF14-12-5	14	12	5	2000-3000	236017702700
DCGF16-16-5	16	16	5	3000-4000	276020602700
DCGF24-24-8	24	24	8	6000-8000	280022302700
DCGF32-32-10	32	32	10	8000-10000	427529602700
DCGF40-40-12	40	40	12	12000-15000	470033202700
DCGF50-50-15	50	50	15	15000-18000	590041502700
DCGF60-60-15	60	60	15	18000-25000	670051602700

carbonated drink filling machine

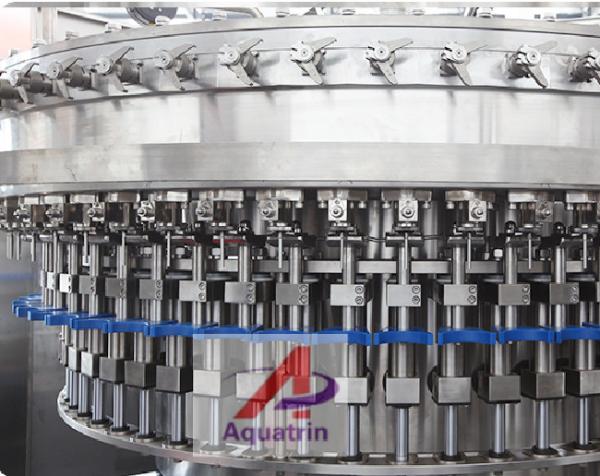

DGCF Carbonated Soda Water Filling Machine 48000BPH 3 In 1 ISO

Auxiliary Equipment

Water Treatment System.


1 Raw water tank + Raw water pump
 2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
 3 Reverse Osmosis (one level)
 4 UV sterilizer
 5 Finished water tank + Pure water pump
Drink Mixing Machine
 1. Suitable beverage types: Cola and lemon.
 2. Mixing ratio range: 3:1 - 6:1
 3. CO2 content: 4 times
 4. Volume: CO2 consumption of about 4 M3/h
 5. CO2 supply pressure: 0.8-1 Mpa
 6. CO2 Purity: 99.9%
 7. Consumption of ethylene glycol solution: water=30M3/h
 8. Ethylene glycol solution pressure: 1.0Mpa
 9. Ethylene glycol solution inlet temperature: -2
 Shower Cooling Machine.
Automatic Labeling Machine

Bottle Packaging Machine.
Bottle blowing machine

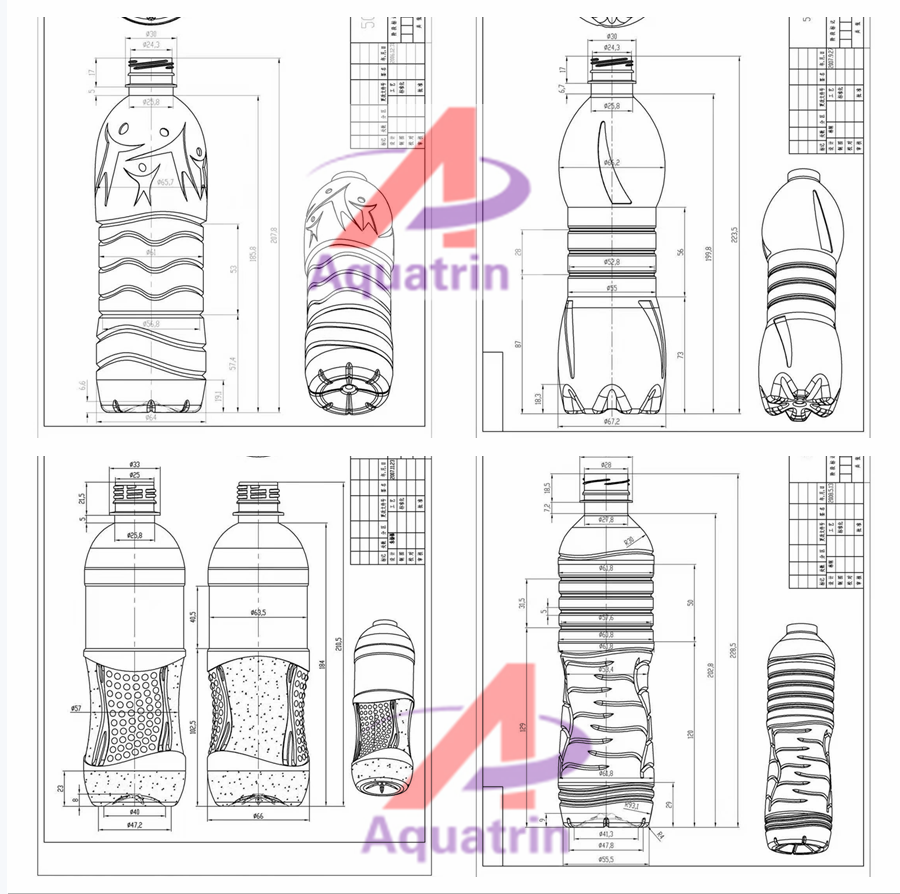

We provide free bottle design

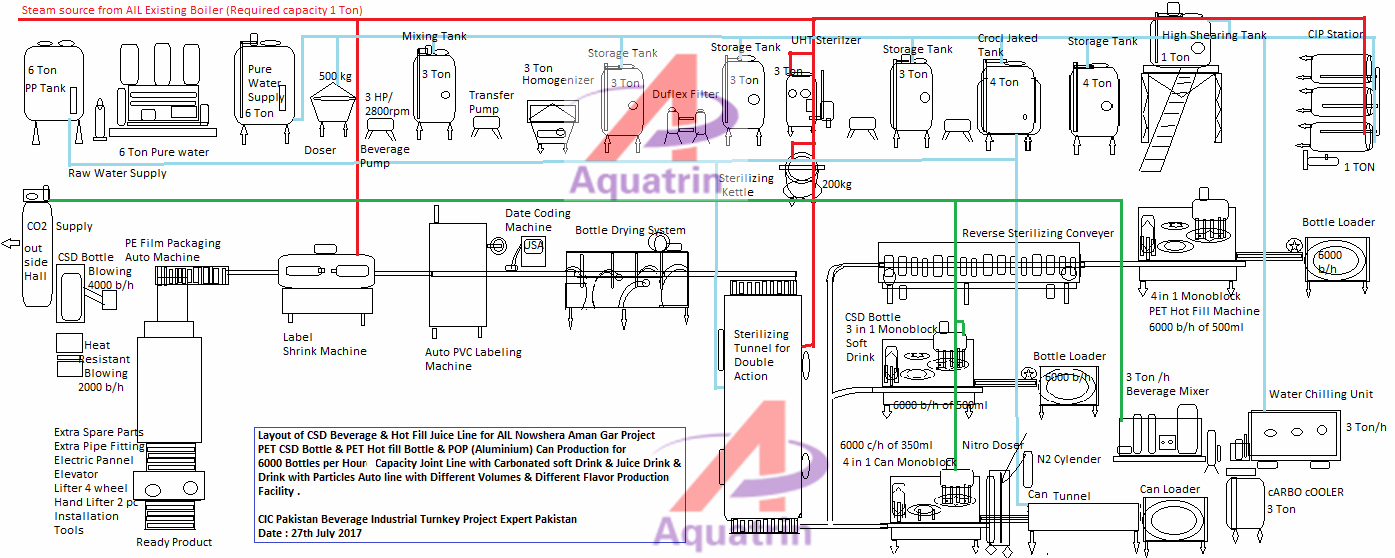

we provide free layout design
