1. Our barreled water producing line is specially designed for 3-5 gallon drinking water;
2. The machine have the function of rinsing barrel, filling water into barrel, capping for the barrel after filling water;

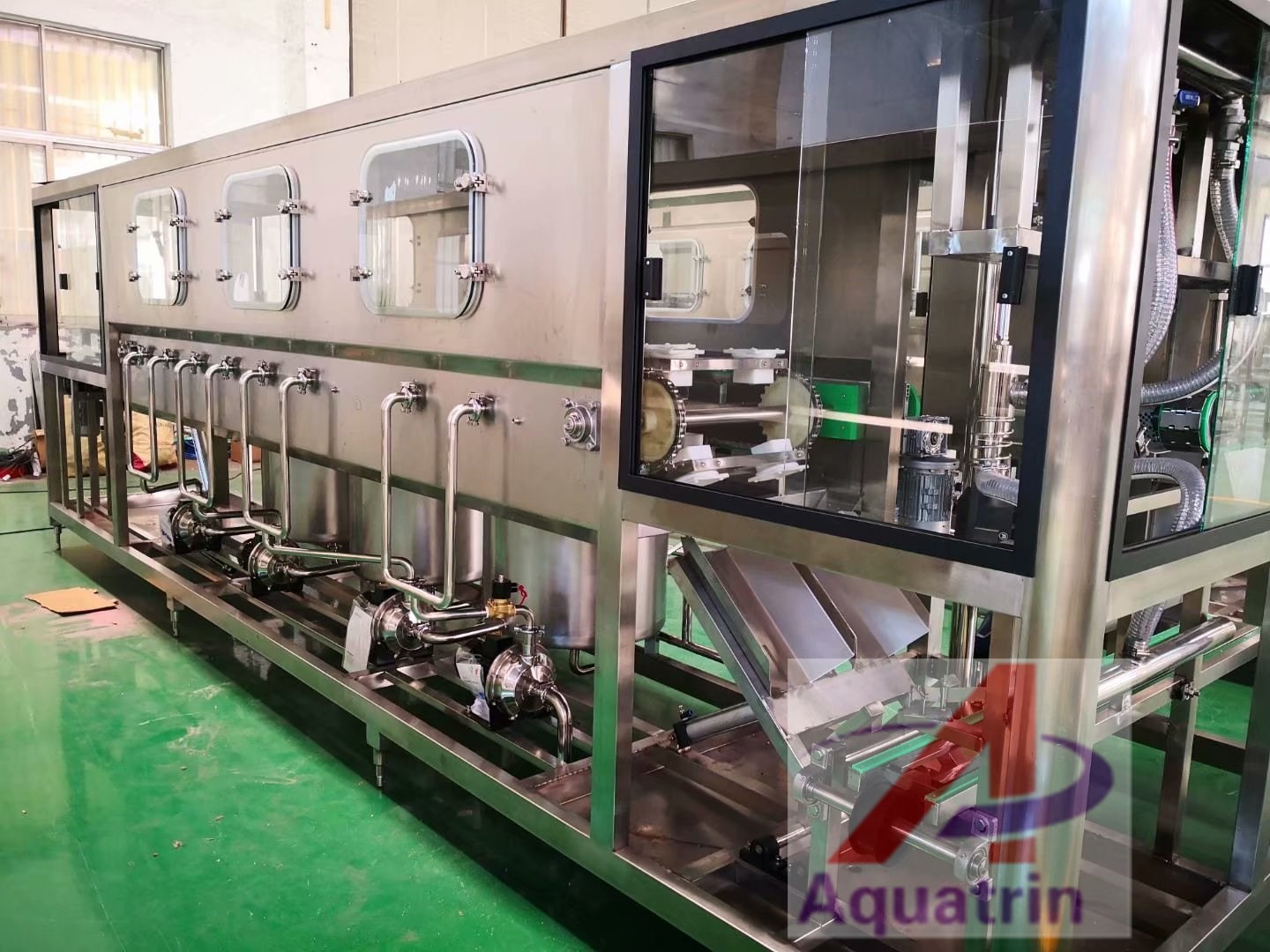

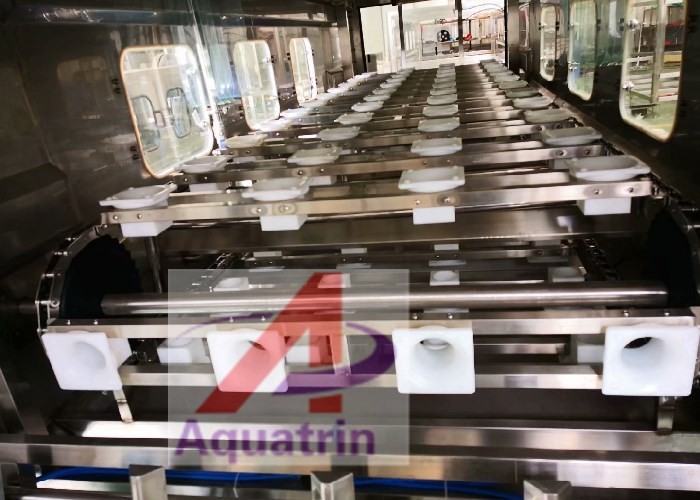

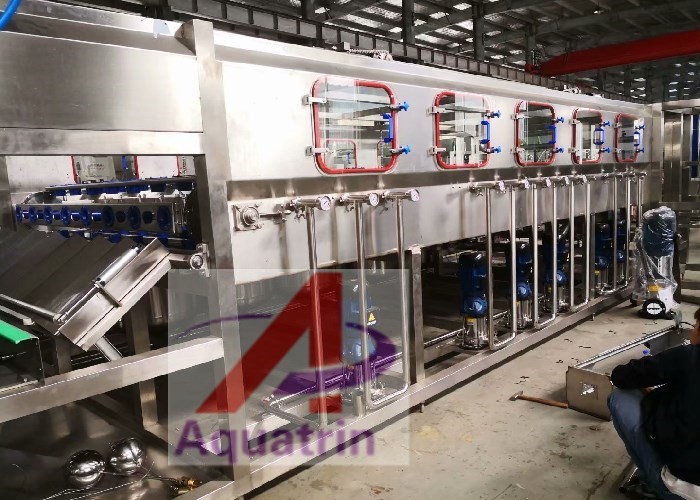

3. Barrel packing is different from small PET bottle packing, usually the barrel is recycle using, so the barrel cleaning is very important as the first step. In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically
4. In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;
5. Our producing line can carry out the bottle washing, sterilizing, filling, capping, counting, heat shrink labeling, packing, discharging

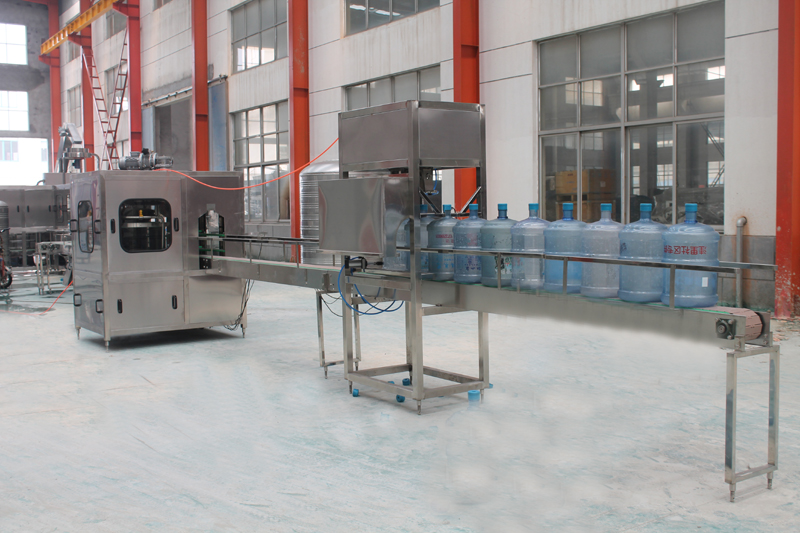

3 / 5 gallon / 20L bottle water washing filling capping equipment / plant / machine / system / line

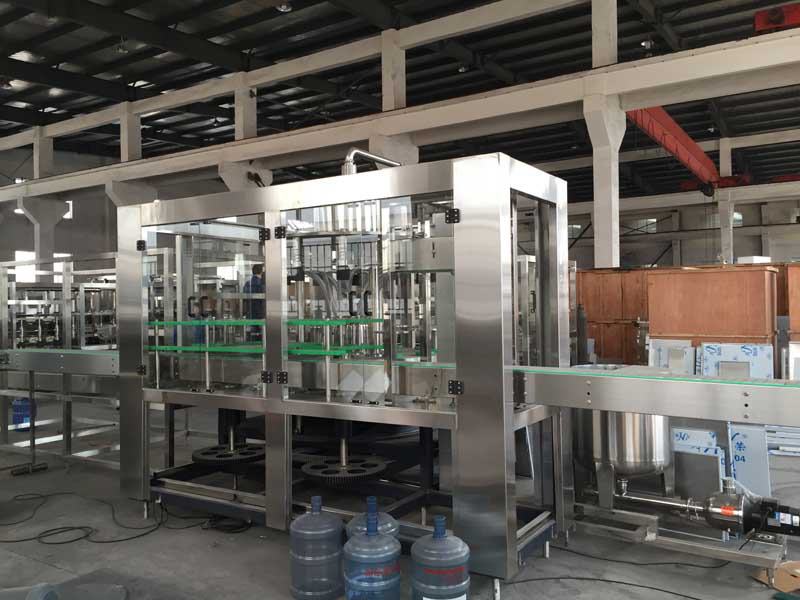

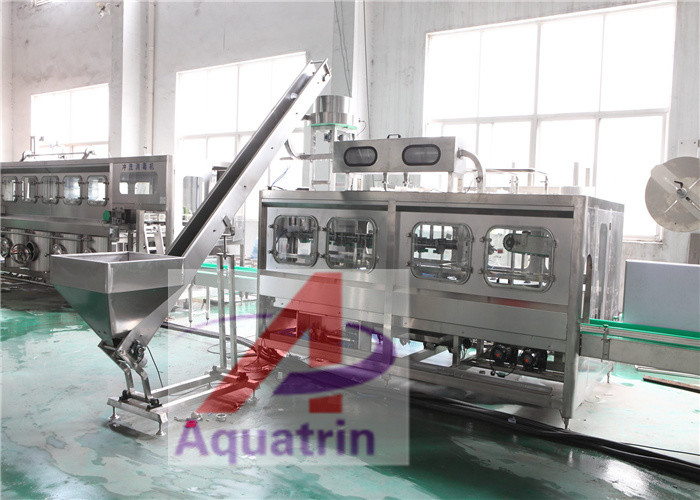

This gallon filler specially produces 3&5 gallons barreled drinking water. This series gallon filler integrates bottle washer, filler and sealer into one unit.
| Items | Name of machine | Model | Size(mm) | Qty. |
| 1200BPH gallon water filler |
| 1 | Automatic de-capper | BG-3 | 1200*800*1950 | 1set |
| 2 | Rotary external washer | XT-3 | 1800*1550*1750 | 1set |
| 3 | Monoblock jar rinser | CXJ-3 | 6000*2100*2100 | 1set |
| 3.1 | Automatic jar loading-unloading device | ST-6 | / | 1set |
| 4 | Automatic rotary jar filler | TG-12 | 3000*2200*2500 | 1set |
| 4.1 | Automatic belt capper | LDYG-1 | 600*200*300 | 1set |
| 4.2 | Automatic cap lifter-washer | SG-1 | 800*800*3000 | 1set |
| 5 | Steam shrink tunnel | SB-1000 | 1000*450*1500 | 1set |
| 6 | Light checker | DJ-1 | 800*200*300 | 1pc |
| 7 | Belt conveyor system | SYS-1 | 35m | 1set |
| 8 | Ink jet code printer | PM-368 | 347*220*100 | 1set |
| OPTION | | | | |
| 8 | Automatic neck labeling machine | TB-50 | 1000*800*2000 | 1set |
| 8.1 | Steam shrink tunnel | SB-1000 | 1000*450*1500 | 1set |
| 8.2 | Steam generator | 9KW | 630*560*1360 | 1set |
| 9 | Automatic stacker | 5*4*3 | 2700*2000*2000 | 1set |
Automatic de-capper
This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.
Automatic rotary jar filler

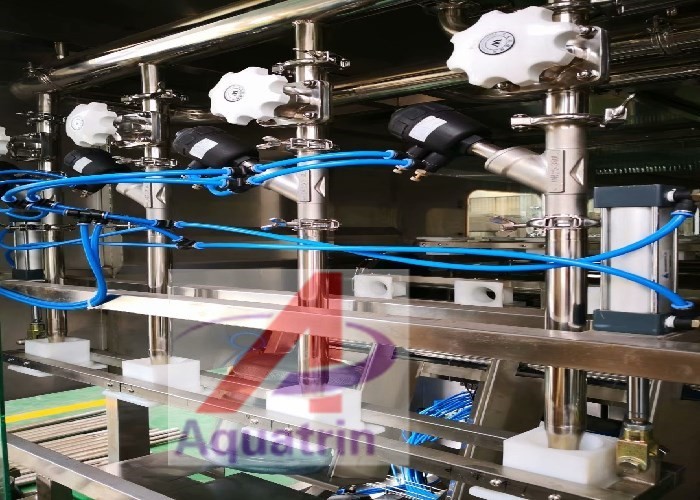

Bottle fed by a star wheel into the bottle filling machine, filling area to reach the starting point, the roller bottles along the cam will hold up, start filling valve for filling a bottle, and with the body, etc. together synchronously rotating; bottles arrive irrigation end point loading zone, to reach the cam roller bottles with low self-reset Close filling valve, filling the end of the barrel with the star wheel sent out of the bottle filling machine.
Automatic neck labeling machine
Adopting model group design, module controlled; Achieve veracity and fast sleeving.
With the good quality touching operation screen, achieving operation by finger, easy and shortcut.
It is a high automatic packing machine. Just one person handles, easy operation.
Higher safely and stability for operation and saving time of manpower.
Whole SUS304 construction, including electrical boiler to generate steam and shrink tunnel especially for barrel cap film;
Power: 20KW
Dimension: 1000*600*1200mm
Weight: 100kg
